Tutorial 3: Antigen Specificity Prediction¶
Fine-tune TCRfoundation for predicting antigen specificity from TCR sequences and gene expression.
1. Setup¶
import warnings
warnings.filterwarnings('ignore')
import os
import scanpy as sc
import tcrfoundation as tcrf
from tcrfoundation.finetune.utils import build_results_dataframe, plot_all_metrics_bubble_chart
2. Configuration¶
checkpoint_path = "../TCR_foundation_model/foundation_model_best.pt"
results_dir = "../results/specificity"
num_epochs = 2 # Just for demonstration. When training from scratch, please set the epoachs as 50.
batch_size = 512
os.makedirs(results_dir, exist_ok=True)
3. Load Data¶
adata = sc.read("../data/speci_adata.h5ad")
print(f"Dataset: {adata.n_obs} cells, {adata.n_vars} genes")
print(f"Antigens: {adata.obs['binding_name'].nunique()} unique")
Dataset: 60114 cells, 3000 genes
Antigens: 8 unique
4. Train Specificity Classifier¶
results, adata_updated = tcrf.finetune.specificity.train_specificity_classifier(
adata,
label_column="binding_name",
checkpoint_path=checkpoint_path,
num_epochs=num_epochs,
batch_size=batch_size
)
Number of classes: 8, Classes: ['A0201_ELAGIGILTV_MART-1_Cancer_binder', 'A0201_GILGFVFTL_Flu-MP_Influenza_binder', 'A0201_GLCTLVAML_BMLF1_EBV_binder', 'A0301_KLGGALQAK_IE-1_CMV_binder', 'A0301_RLRAEAQVK_EMNA-3A_EBV_binder', 'A1101_AVFDRKSDAK_EBNA-3B_EBV_binder', 'A1101_IVTDFSVIK_EBNA-3B_EBV_binder', 'B0801_RAKFKQLL_BZLF1_EBV_binder']
Loaded model with max_length: 30
==================== Training binding_name classifier: rna_only ====================
Loaded model with max_length: 30
Mode rna_only Epoch 1/2: Train Loss = 0.8529 | Val Loss = 0.6481 | Val Acc = 0.8000
--> Best model saved with Val Acc = 0.8000
Mode rna_only Epoch 2/2: Train Loss = 0.6360 | Val Loss = 0.6245 | Val Acc = 0.8049
--> Best model saved with Val Acc = 0.8049
==================== Training binding_name classifier: tcr_only ====================
Loaded model with max_length: 30
Mode tcr_only Epoch 1/2: Train Loss = 0.6180 | Val Loss = 0.3954 | Val Acc = 0.8919
--> Best model saved with Val Acc = 0.8919
Mode tcr_only Epoch 2/2: Train Loss = 0.3810 | Val Loss = 0.3347 | Val Acc = 0.9160
--> Best model saved with Val Acc = 0.9160
==================== Training binding_name classifier: tcra_only ====================
Loaded model with max_length: 30
Mode tcra_only Epoch 1/2: Train Loss = 0.7298 | Val Loss = 0.5022 | Val Acc = 0.8660
--> Best model saved with Val Acc = 0.8660
Mode tcra_only Epoch 2/2: Train Loss = 0.4746 | Val Loss = 0.4163 | Val Acc = 0.8968
--> Best model saved with Val Acc = 0.8968
==================== Training binding_name classifier: tcrb_only ====================
Loaded model with max_length: 30
Mode tcrb_only Epoch 1/2: Train Loss = 0.8064 | Val Loss = 0.5314 | Val Acc = 0.8597
--> Best model saved with Val Acc = 0.8597
Mode tcrb_only Epoch 2/2: Train Loss = 0.5356 | Val Loss = 0.4554 | Val Acc = 0.8839
--> Best model saved with Val Acc = 0.8839
==================== Training binding_name classifier: rna_tcr ====================
Loaded model with max_length: 30
Mode rna_tcr Epoch 1/2: Train Loss = 0.4879 | Val Loss = 0.2819 | Val Acc = 0.9296
--> Best model saved with Val Acc = 0.9296
Mode rna_tcr Epoch 2/2: Train Loss = 0.2722 | Val Loss = 0.2525 | Val Acc = 0.9357
--> Best model saved with Val Acc = 0.9357
=== Extracting embeddings and predictions for binding_name ===
Loaded model with max_length: 30
Extracting embeddings and predictions for rna_only modality...
Stored embedding in adata.obsm['X_binding_name_rna_only_emb'] with shape (60114, 128)
Stored predictions in adata.obs['binding_name_rna_only_pred']
Extracting embeddings and predictions for tcr_only modality...
Stored embedding in adata.obsm['X_binding_name_tcr_only_emb'] with shape (60114, 256)
Stored predictions in adata.obs['binding_name_tcr_only_pred']
Extracting embeddings and predictions for tcra_only modality...
Stored embedding in adata.obsm['X_binding_name_tcra_only_emb'] with shape (60114, 128)
Stored predictions in adata.obs['binding_name_tcra_only_pred']
Extracting embeddings and predictions for tcrb_only modality...
Stored embedding in adata.obsm['X_binding_name_tcrb_only_emb'] with shape (60114, 128)
Stored predictions in adata.obs['binding_name_tcrb_only_pred']
Extracting embeddings and predictions for rna_tcr modality...
Stored embedding in adata.obsm['X_binding_name_rna_tcr_emb'] with shape (60114, 256)
Stored predictions in adata.obs['binding_name_rna_tcr_pred']
Processing rna_only: 100%|██████████████████████████████████| 59/59 [00:02<00:00, 20.75it/s]
Processing tcr_only: 100%|██████████████████████████████████| 59/59 [00:02<00:00, 20.25it/s]
Processing tcra_only: 100%|█████████████████████████████████| 59/59 [00:02<00:00, 20.24it/s]
Processing tcrb_only: 100%|█████████████████████████████████| 59/59 [00:02<00:00, 20.24it/s]
Processing rna_tcr: 100%|███████████████████████████████████| 59/59 [00:02<00:00, 19.81it/s]
5. Save Results¶
# Save adata
adata_updated.write(f"{results_dir}/adata_binding_name.h5ad")
# Save metrics
df = build_results_dataframe(results)
df.to_csv(f"{results_dir}/binding_name_results.csv", index=False)

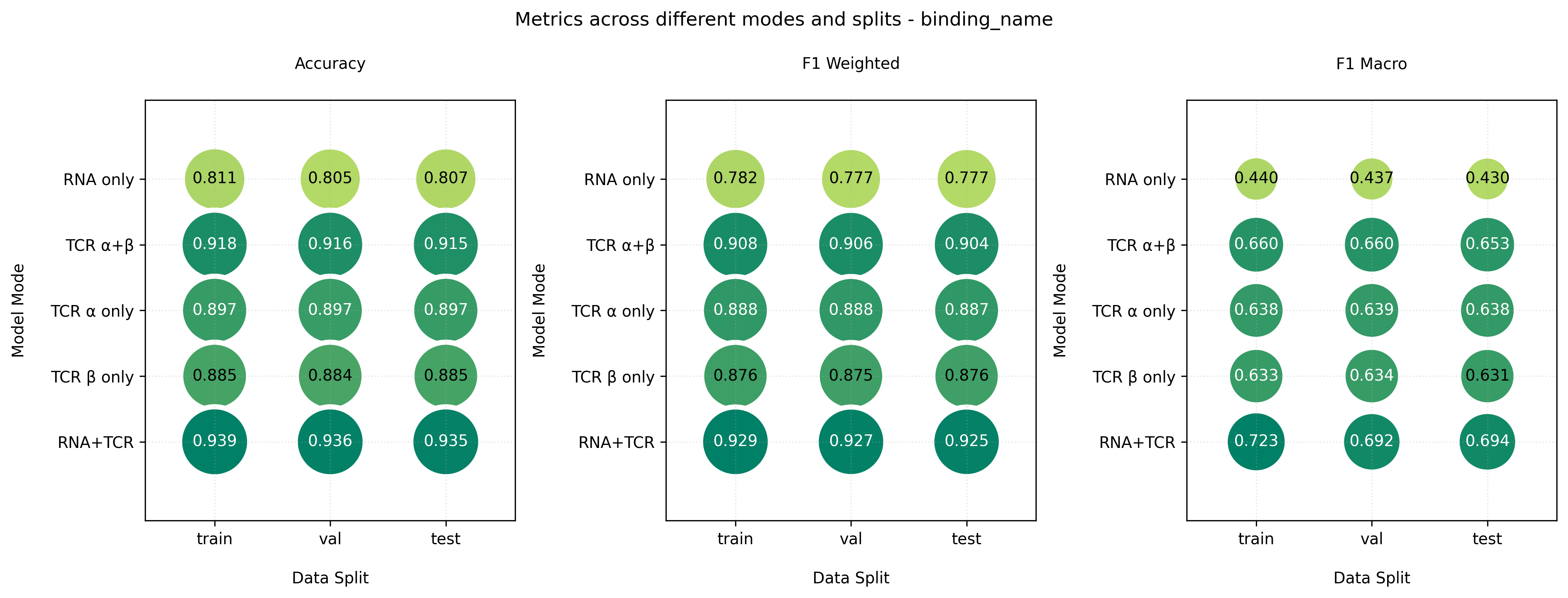

# Create visualization
plot_all_metrics_bubble_chart(df, results_dir, "binding_name")
print("\nResults saved to:", results_dir)
Results saved to: ../results/specificity
6. Performance Summary¶
print("\n" + "="*60)
print("Performance by Modality")
print("="*60)
print(df)
print("\n" + "="*60)
for mode, metrics in results.items():
test_acc, test_f1_macro, test_f1_weighted = metrics['test']
print(f"{mode:15s}: Acc={test_acc:.3f}, F1-macro={test_f1_macro:.3f}")
============================================================
Performance by Modality
============================================================
Mode Split Accuracy F1 Weighted F1 Macro
0 rna_only train 0.810856 0.782192 0.440004
1 rna_only val 0.804924 0.776947 0.436638
2 rna_only test 0.807053 0.777181 0.430111
3 tcr_only train 0.918392 0.907944 0.659940
4 tcr_only val 0.916047 0.906349 0.659977
5 tcr_only test 0.914837 0.904417 0.653300
6 tcra_only train 0.897431 0.887603 0.638441
7 tcra_only val 0.896751 0.887648 0.639294
8 tcra_only test 0.896984 0.887002 0.637773
9 tcrb_only train 0.885477 0.876032 0.632752
10 tcrb_only val 0.883886 0.875196 0.633631
11 tcrb_only test 0.885451 0.875628 0.630690
12 rna_tcr train 0.938734 0.929175 0.723491
13 rna_tcr val 0.935677 0.926523 0.692007
14 rna_tcr test 0.935462 0.925458 0.694275
============================================================
rna_only : Acc=0.807, F1-macro=0.430
tcr_only : Acc=0.915, F1-macro=0.653
tcra_only : Acc=0.897, F1-macro=0.638
tcrb_only : Acc=0.885, F1-macro=0.631
rna_tcr : Acc=0.935, F1-macro=0.694
